FDF-MG series are specially designed for R410A system , can be also used for liquid ,suction , hot gas lines with other flourinated refrigerants.

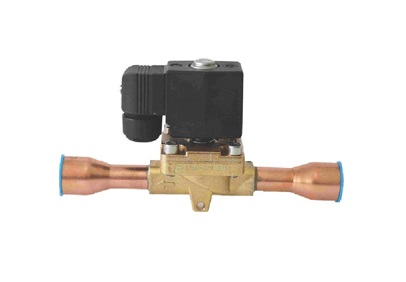

contact us- FDF-MG series are pilot operated solenoid valves for liquid, suction and hot gas application.
- Full range of solenoid valves for refrigeration and air condition application.
- Wide choice of coils for AC and DC.
- Suitable for R410A refrigerant、HFC & HCFC.
- Temperature of medium -40℃～＋105℃, Max +130℃ during defrosting.
- Ambient environmental temperature -40℃～+55℃.
- Max. working pressure 45 bar.
- Maximum test pressure ≥68 bar.
- Versions with UL and CUL approval can be supplied according to order.

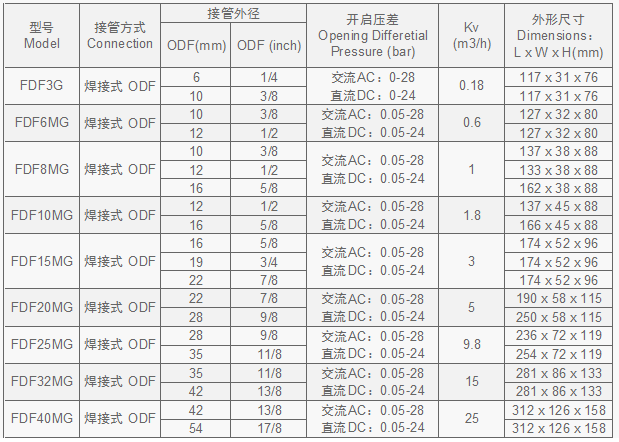

The Kv value is the water flow in m3/h at a pressure drop across valve of 1 bar,ρ=1000kg/ m3.
Note :If you have special requirement ,please contact STF.

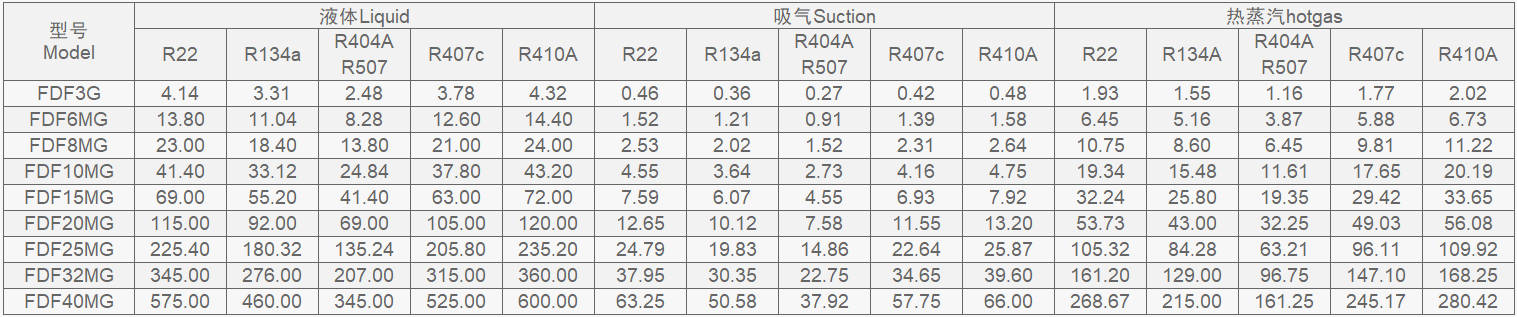

Rated liquid and suction vapour capacity is based on evaporating temperature te=4.4℃,liquid temperature ahead of valve t1=38℃,and pressure drop in valve R134a △P=0.15 bar, R22、R404A、R507、R407c、R410A ΔP=0.21bar.
Rated hot gas capacity is based on condensing temperature tc=+40℃,pressure drop across valveΔP=0.8bar,hot gas temperature th=+65℃,and subcooling of refrigerant Δtsub=4K.
